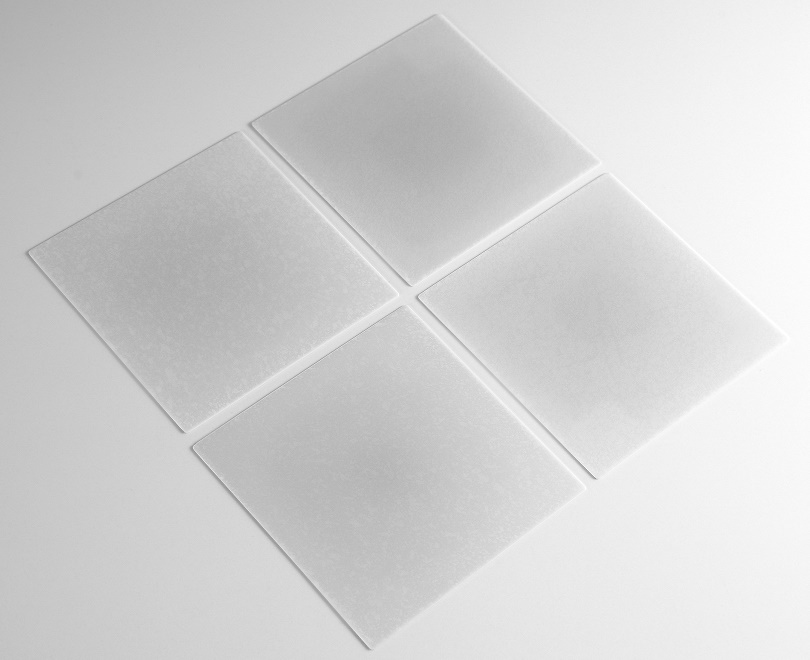

Can a Few-Dollar Aluminum Nitride Ceramic Sheet Actually Be Used?

In our previous article, "Why Is Aluminum Nitride (AlN) So Expensive?", we examined the high barriers facing premium aluminum nitride substrates in terms of raw materials, processing, and market dynamics. Since publication, many readers have asked: if AlN is so costly, why do aluminum nitride sheets appear online for just a few dollars? Are these a costeffective alternative—or a false economy?

The reality is that Low-Cost AlN products do exist, but they differ fundamentally from High-End substrates. This is not a matter of "genuine versus counterfeit," but rather a clear stratification based on application scenarios and performance specifications.

1. Purity Gap: Thermal Conductivity Makes All the Difference

High-End Substrates: Manufactured from 4Ngrade (99.99%) high-purity powder with oxygen content below 0.1%. Typical thermal conductivity reaches 170 W/(m·K) or higher, with select advanced processes achieving up to 230 W/(m·K) under laboratory conditions. This performance benchmark is precisely what leading aluminum nitride powder suppliers compete to deliver.

Low-Cost Sheets: Typically produced from lowerpurity powders with elevated oxygen content, yielding actual thermal conductivity of only 50–120 W/(m·K). For high-power devices, this inadequate heat dissipation can cause severe thermal accumulation. Moreover, the feedstock for these products generally comes from suppliers whose quality control standards fall far short of those maintained by established ceramic filler manufacturers—meaning the aluminum nitride powder price reflects its compromised performance.

2. Process Gap: From "AsFired Blank" to "Precision Substrate"

High-End Substrates: Produced via sintering above 1800°C, followed by precision lapping (Ra≤0.5 μm), laser cutting, and rigorous quality screening. These are quintessential ceramic electronic substrates, offering tight dimensional tolerances and superior surface quality.

Low-Cost Sheets: Typically supplied as unpolished "asfired" blanks or miniature spacers (e.g., under 10 mm × 10 mm), bypassing costly downstream processing. Surface roughness and flatness are poor, making them unsuitable for precision assembly.

3. Application Gap: Distinct Roles for Different Products

High-End Substrates: Deployed in missioncritical applications including 1.6T optical modules, SiC power modules, and aerospace systems. In highspeed optical communications specifically, aluminum nitride ceramic for optical modules has become indispensable for resolving laser chip thermal bottlenecks—directly safeguarding signal integrity and transmission reliability.

Low-Cost Sheets: Generally limited to educational demonstrations, lowpower LED heat sinking, or mechanical spacing in noncritical assemblies. They cannot survive high-power-density environments.

Summary

When encountering lowpriced AlN products, there is no need for surprise—nor should it cast doubt on the pricing logic of premium substrates. The key lies in matching the material to your requirement:

   For thermal management tied to the reliability and service life of core devices (e.g., laser mounts in optical modules or power semiconductor packages), high-purity AlN is the only viable choice.

   For noncritical, costdriven applications, Low-Cost sheets may serve adequately—but understand the performance tradeoff.
